Specification: Solar 1200-4000A

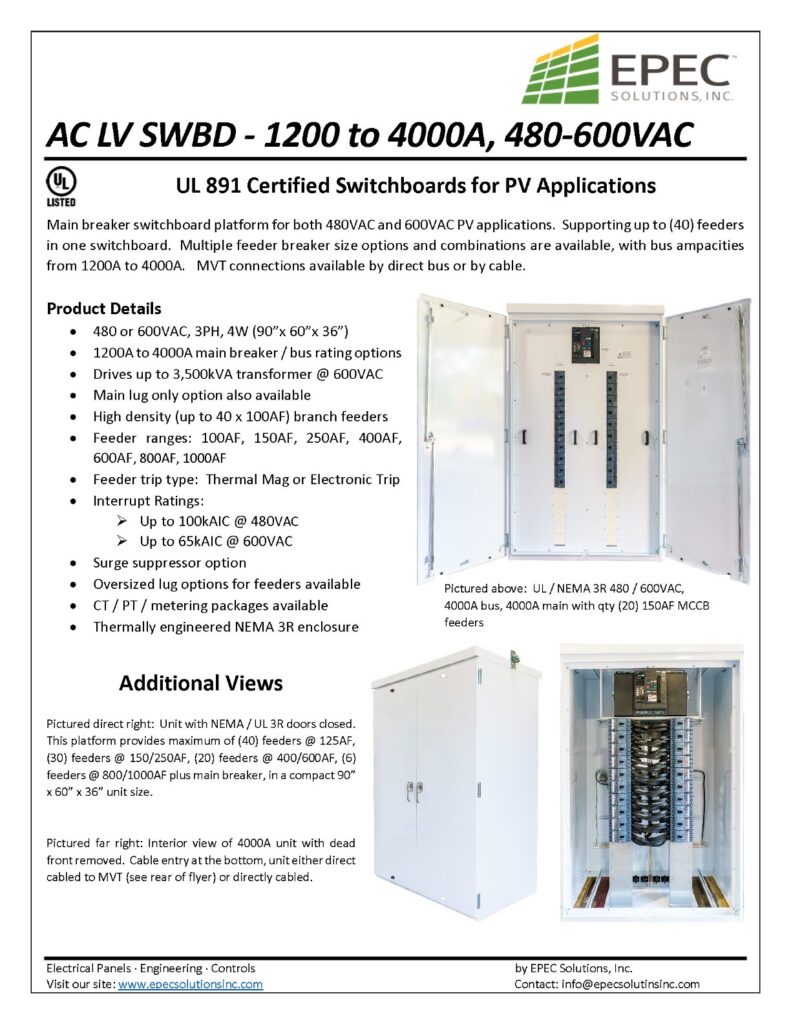

AC LV SWBD - 1200 to 4000A, 480-600VAC

UL 891 Certified Switchboards for PV Applications

Main breaker switchboard platform for both 480VAC and 600VAC PV applications. Supporting up to (40) feeders in one switchboard. Multiple feeder breaker size options and combinations are available, with bus ampacities from 1200A to 4000A. MVT connections available by direct bus or by cable

Product Details

  • 480 or 600VAC, 3PH, 4W (90″x 60″x 36″)
  • 1200Ato 4000A main breaker / bus rating options
  • Drives up to 3,500kVA transformer @ 600VAC
  • Main lug only option also available
  • High density (up to 40 x 100AF) branch feeders
  • Feeder ranges: 100AF, 150AF, 250AF, 400AF, 600AF, 800AF, 1000AF
  • Feeder trip type: Thermal Mag or Electronic Trip
  • Interrupt Ratings:
    • > Up to 100kAIC @ 480VAC > Up to 65kAIC @ 600VAC
  • Surge suppressor option
  • Oversized lug options for feeders available
  • CT / PT / metering packages available
  • Thermally engineered NEMA 3R enclosure

Additional Views

Pictured direct right: Unit with NEMA / UL 3R doors closed. This platform provides maximum of (40) feeders @ 125AF, (30) feeders @ 150/250AF, (20) feeders @ 400/600AF, (6) feeders @ 800/1000AF plus main breaker, in a compact 90″ x 60″ x 36″ unit size.

Pictured far right: Interior view of 4000A unit with dead front removed. Cable entry at the bottom, unit either direct cabled to MVT (see rear of flyer) or directly cabled.
