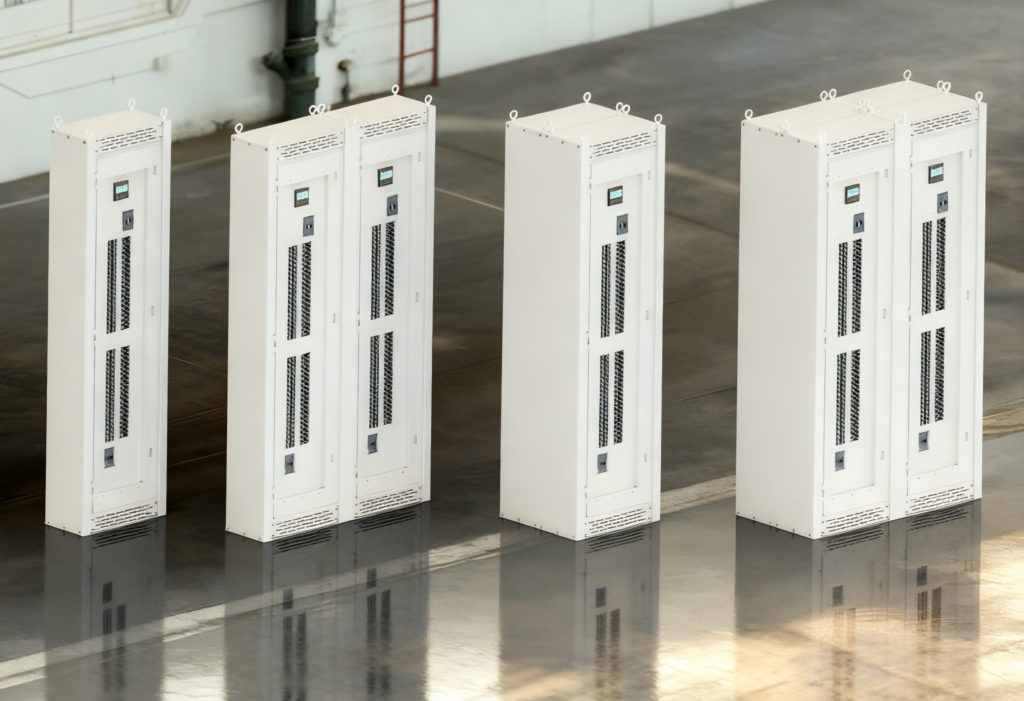

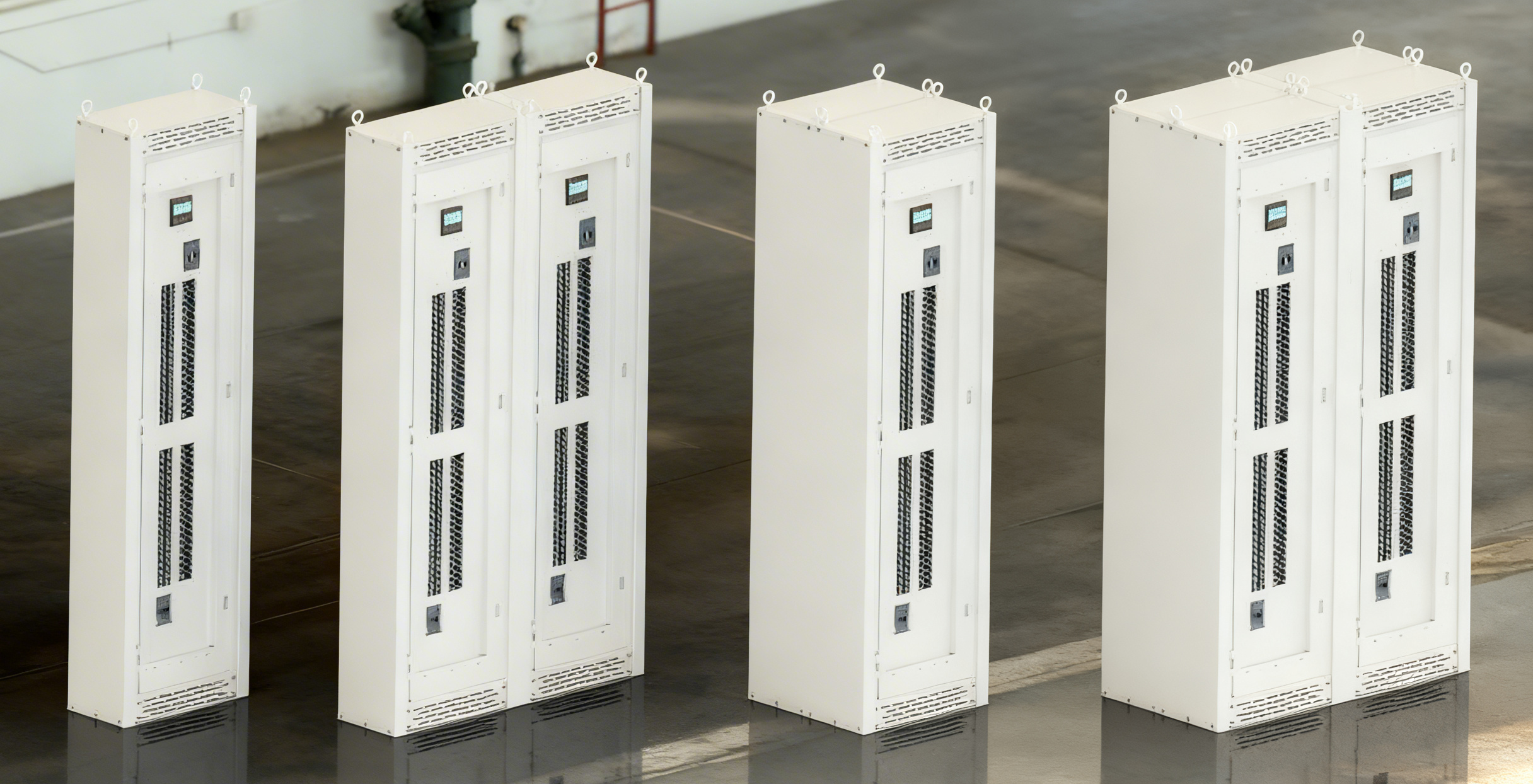

Power Your Data Center with Precision & Reliability
Input: 3P4W+G
Nominal Voltage Rating (60HZ): 208Y/120,
415Y/240, 480Y/277, 600Y/347
Ampacity: 200 – 1600A
SCCR: Up To 65kA@480V
Main Device: MLO or MCCB Single, Dual, Dual
Source , Up To 800A
Neutral: 200%
Branch Ratings: 15 – 125A
Circuits: 42, 84, Up To 336
Surge Protection: 200kA

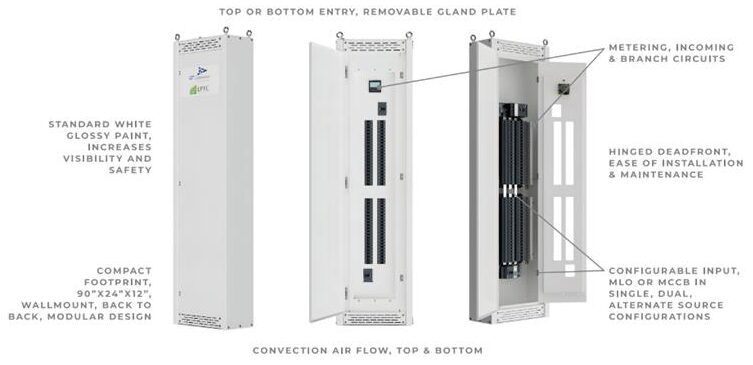

Safety: (cULus UL 891) IR window or
continuous thermal monitoring (optional)
Enclosure: NEMA 1, NEMA 3R
Cooling: Convection Air
Deadfront: Hinged
Accessibility: Front
Configurations: Free standing,
wallmounted, back to back
Cable Input: Top or bottom entry
Operating Temp: 0 – 40C
Storage Temp: -20C to 60C
Seismic: Engineered Calc.
Paint: Glossy White
Dimensions: 90”x24”x12”
Input Metering: Standard
Output Metering: Optional
Communications: Modbus TCP / IP, Modbus
RTU, BacNet
Accuracy: Revenue Grade
Metering Parameters: Input & Output voltage;
Output current; kVA kW, kWH, Frequency;
power factor, load peak demand
Personalized service – Direct collaboration with EPEC’s engineering and project management teams ensures every solution is aligned with your needs.
Industry Focused Solutions – Designs and features optimized for the unique demands of our target industries, ensuring compliance, reliability, and performance.
Exceptional Technical Support – Access to knowledgeable in-house engineers and technicians from design through commissioning.
Short Leadtime – Lean manufacturing processes &
domestic production help accelerate delivery schedules for time-sensitive projects.
Comprehensive Warranty & Support – Strong warranty combined with lifetime technical assistance for peace of mind.
