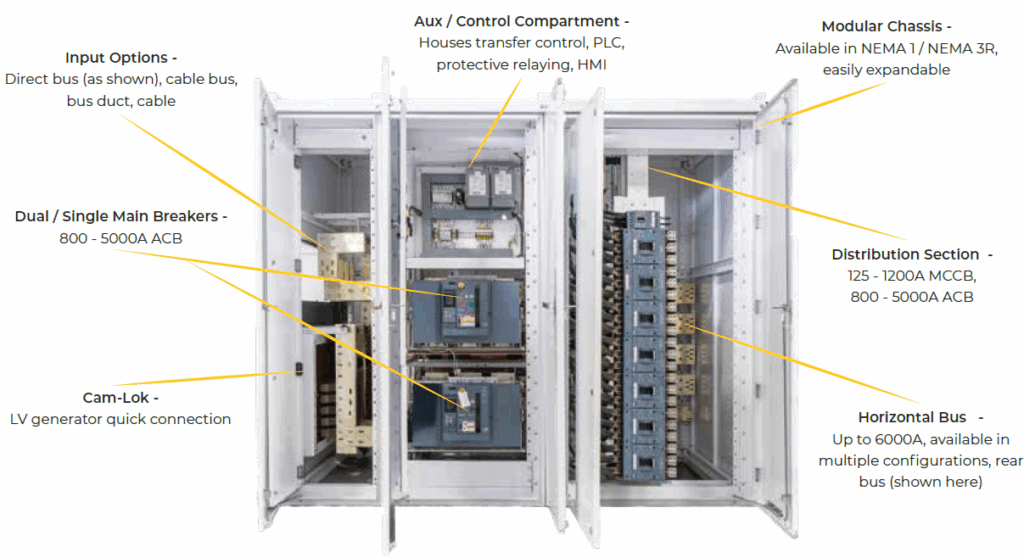

Input: 208 -800VAC, 3P3W 3P4W 800 – 6000A
Ampacity: 800 – 1600A
Interrupt Rating: 65 / 100kAIC @ 480/600/800VAC
Configurations: Single Main, Dual Main, Multiple
Main, Main-tie-Main, Up to 6000A
Feeder ACB Sz: 800 – 5000A
Feeder MCCB Sz: 125 – 1200A
Feeder Type: Electronic Trip or Thermal Mag (TM
MCCB Only)
Surge Protection: 200kA
Connection: Direct bus, Cable bus, Cable tray, Cable
Transfer: Manual/Automatic Transfer
Safety: UL 891
Enviromental: UL / NEMA 1 & 3R non-walk in
Accessibility: Front / rear or front only
Incoming / Outgoing Cable: Top or bottom
(cable, cable bus, wire tray, bus duct)
Horizontal Bus: Option for top, bottom, middle
or rear
Cooling: Convection or forced Air
Operating Temp: 0 – 50C
Storage Temp: -20C – 60C non condensing
Paint: Glossy White, any color optional
Dimensions: 90”x (48’,40”,36”) please add
6” depth & 2” height for N3R
Transfer Controls: ATC or PLC
Thermal Monitoring: Continuous via Modbus
TCP or IR window
Logic: PLC
HMI: 10” touchscreen (circuit breaker
monitoring & control)
Communications: Modbus TCP / IP, Modbus
RTU, BacNet
Incoming / Outgoing Metering: Power quality
metering separate or built into ACB
Diagnostics: Com-Ready MCCBs & ACBs
available for full diagnosticn communications
Personalized service – Direct collaboration with EPEC’s engineering and project management teams ensures every solution is aligned with your needs.
Industry Focused Solutions – Designs and features optimized for the unique demands of our target industries, ensuring compliance, reliability, and performance.
Exceptional Technical Support – Access to knowledgeable in-house engineers and technicians from design through commissioning.
Short Leadtime – Lean manufacturing processes &
domestic production help accelerate delivery schedules for time-sensitive projects.
Comprehensive Warranty & Support – Strong warranty combined with lifetime technical assistance for peace of mind.
